AOI Inspection (Automated Optical Inspection)

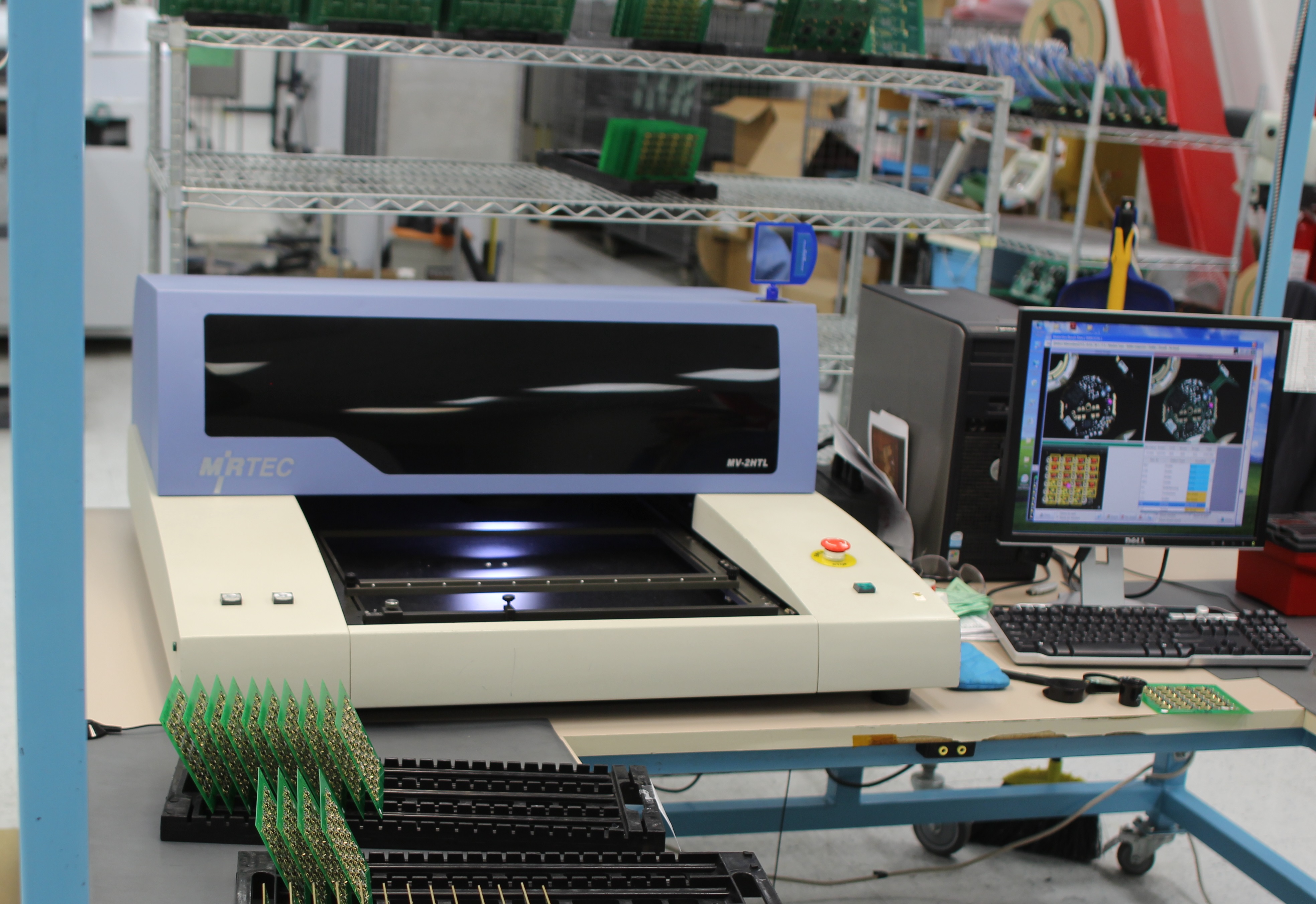

Newonics uses the Mirtec MV-2HT AOI.
  • Missing or misplaced components.
  • Verify markings on components to verify that they match.
  • Opens
  • Shorts

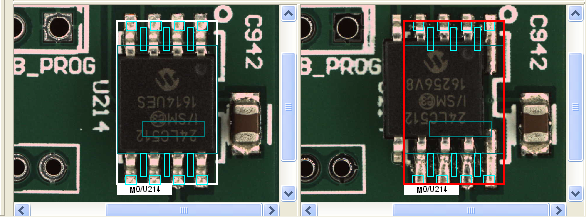

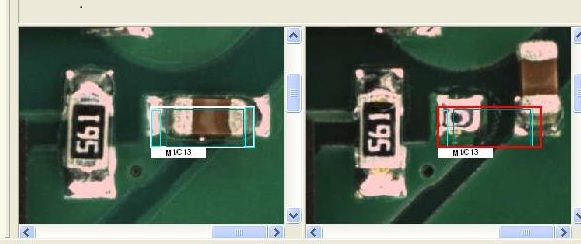

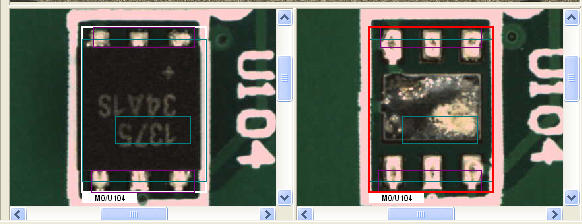

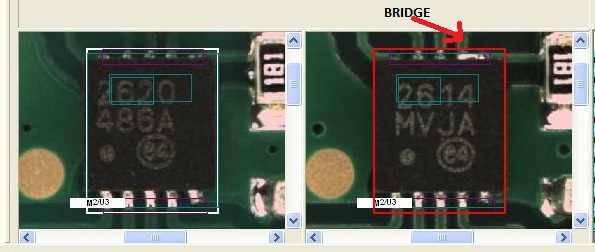

SHIFTED MISSING CAP Bridge On IC Missing Shifted

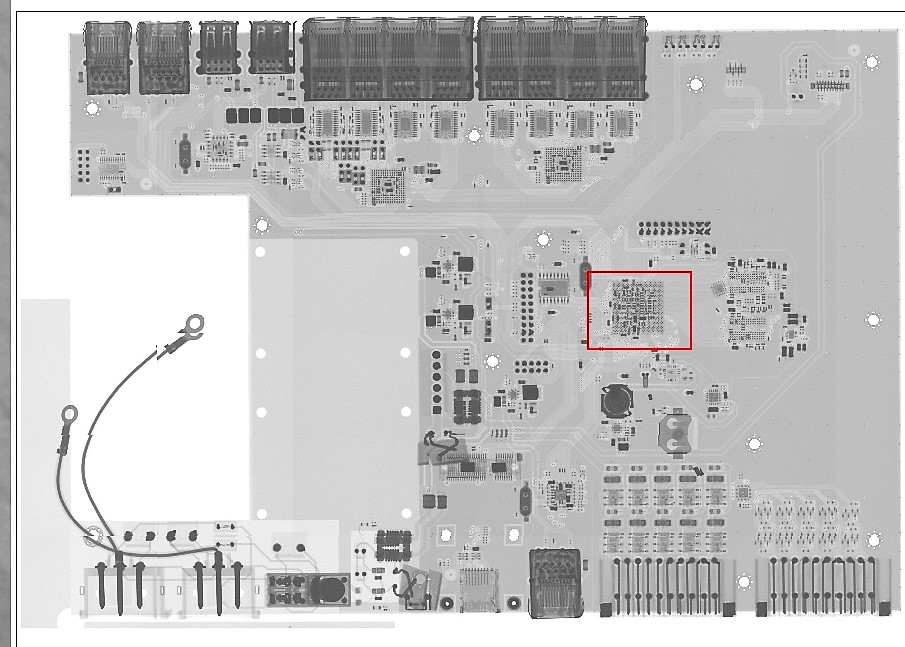

X-Ray Inspection

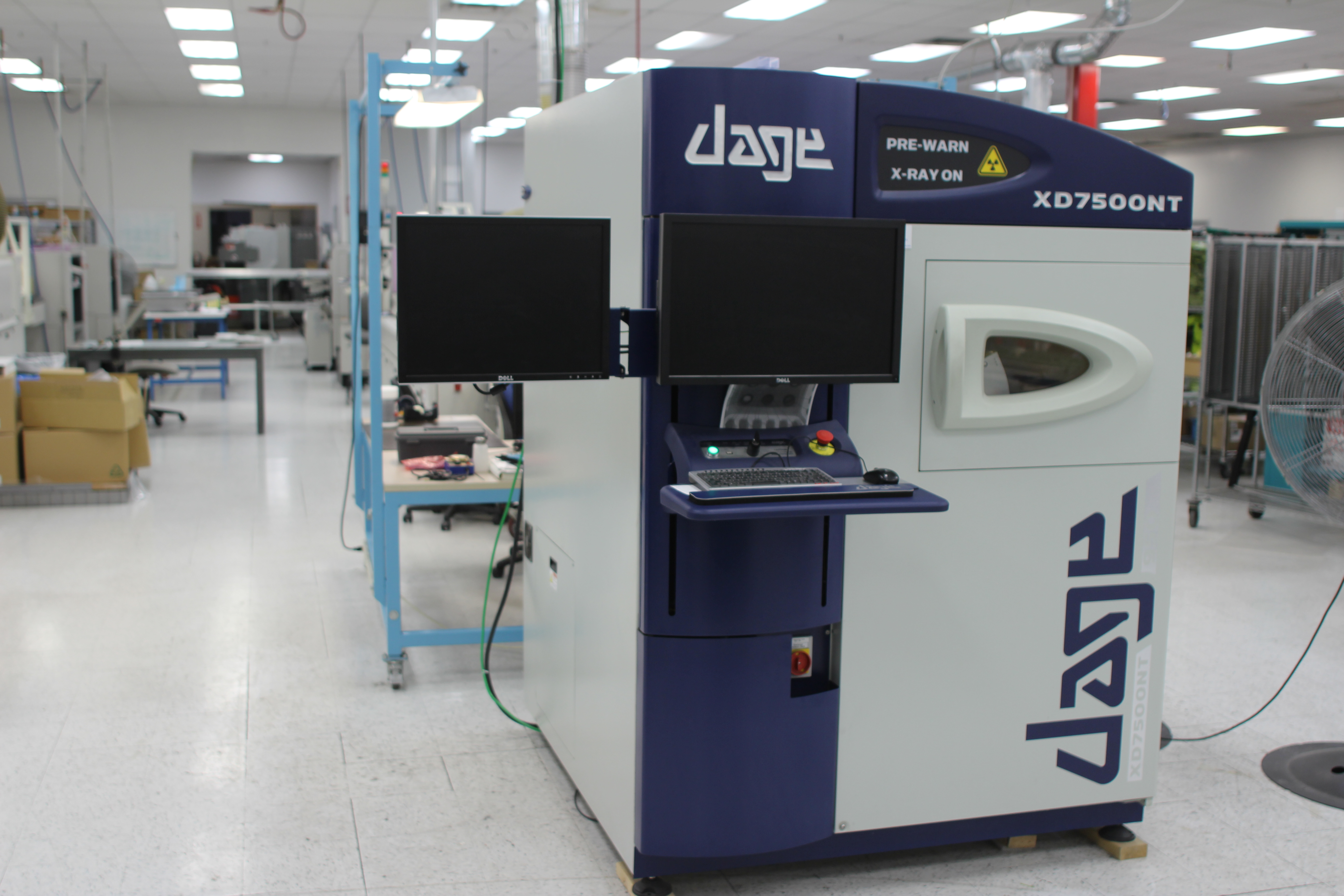

Newonics uses the DAGE XD7500NT digital x-ray inspection system with sub-micron inspection capability recognition up to 950 nanometers. It provides oblique angle viewing of up to 70-degrees for any position 360-degrees around any point of the entire 18" x 16" (458 x 407 mm) inspection area.

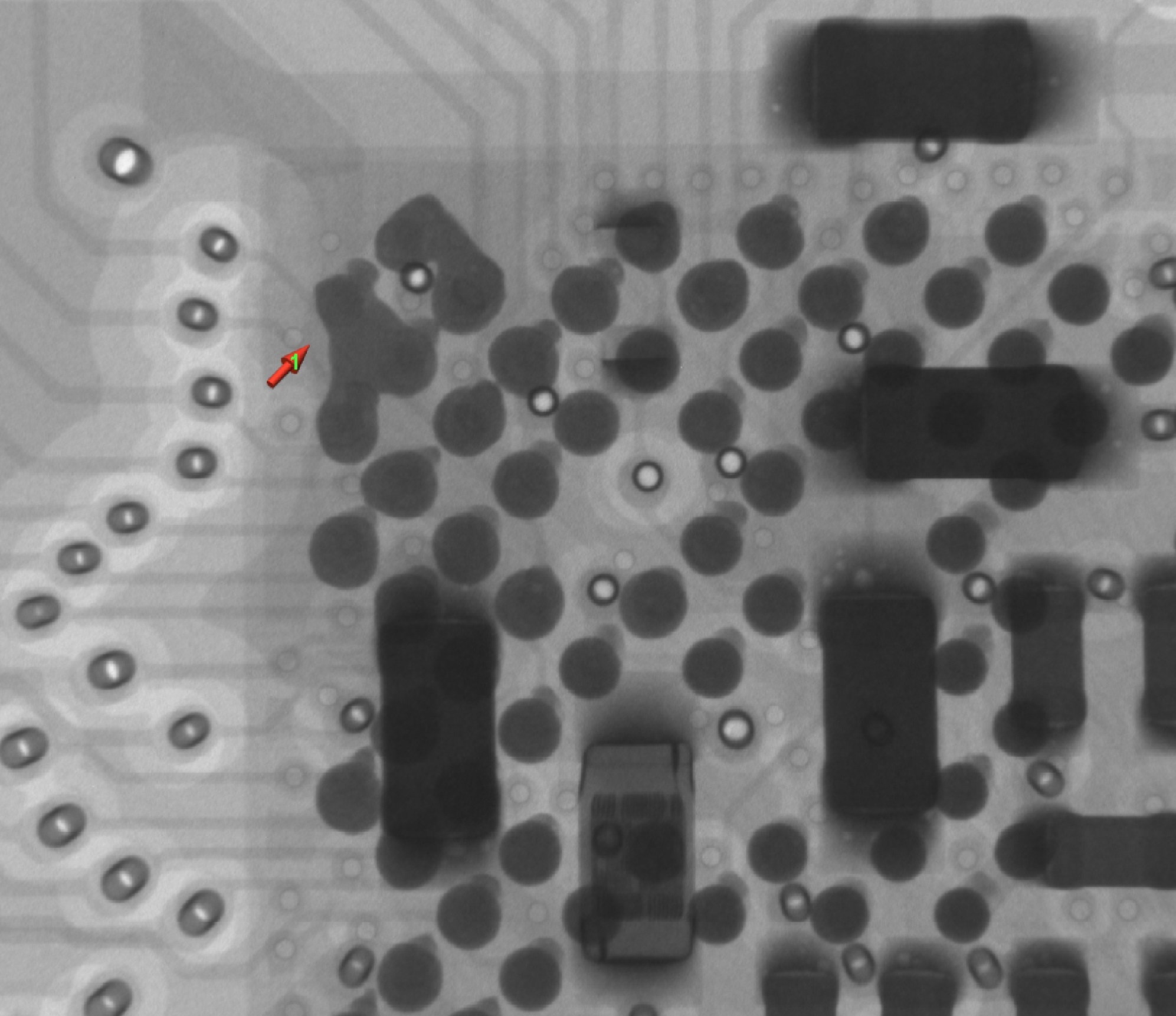

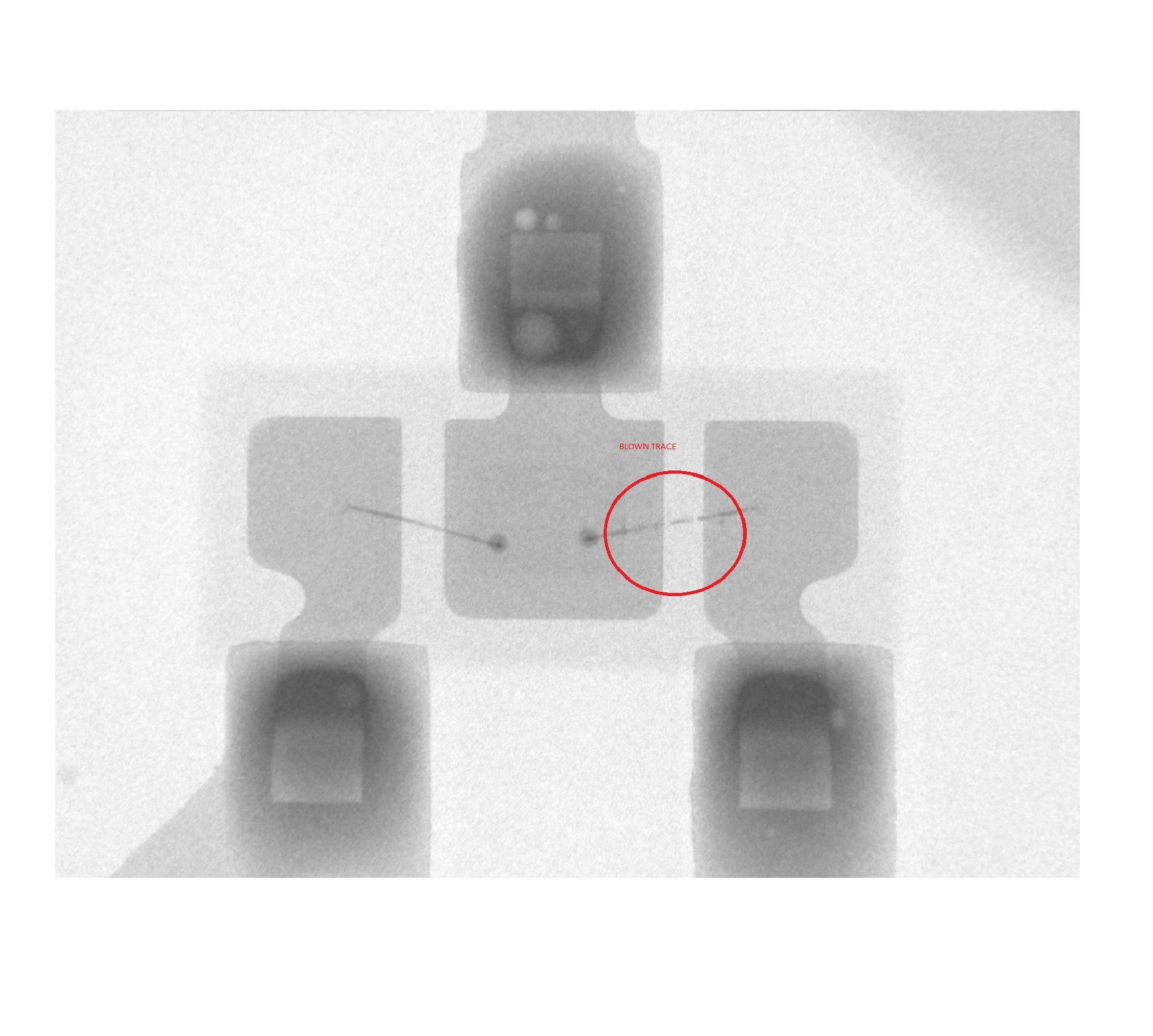

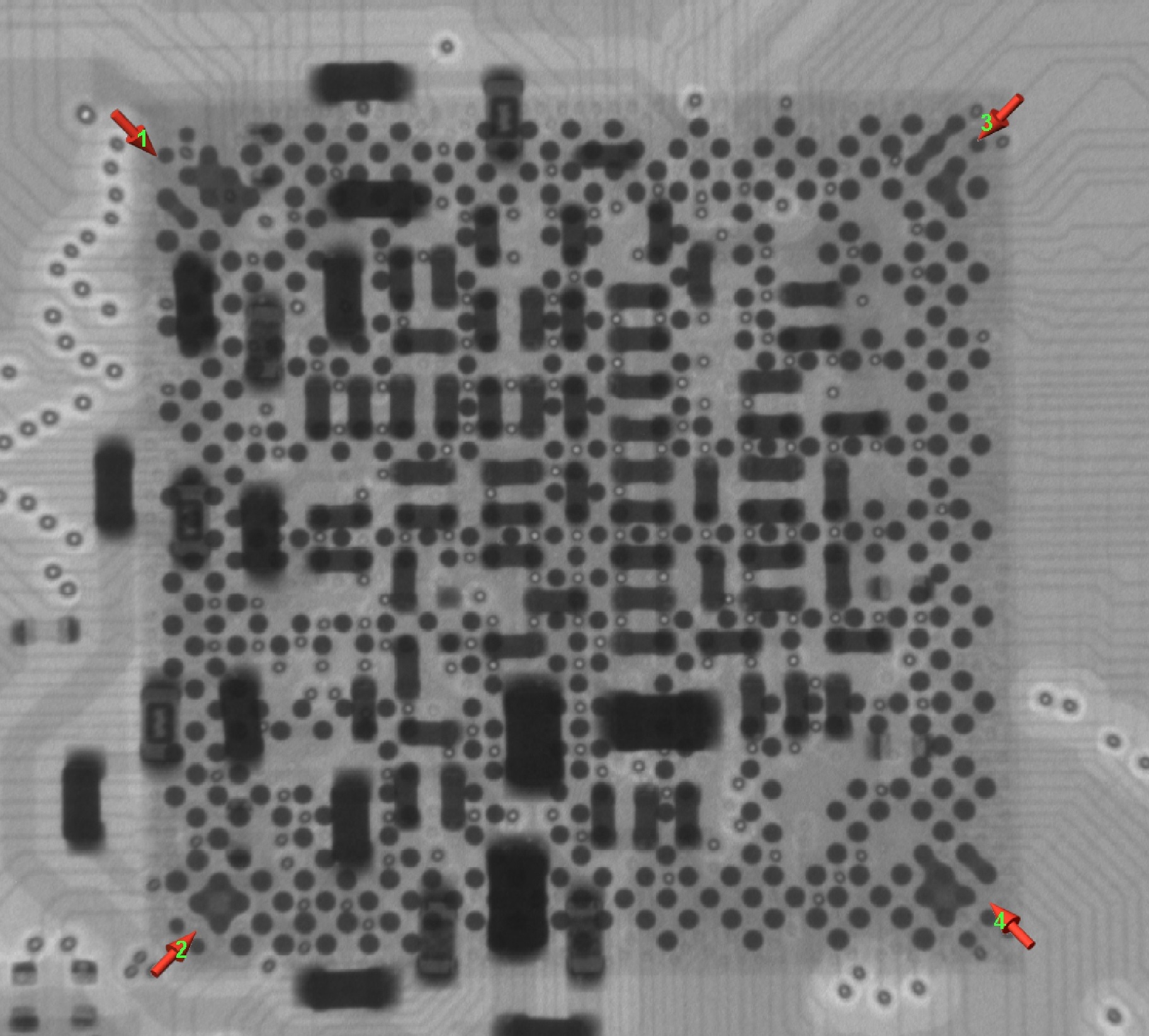

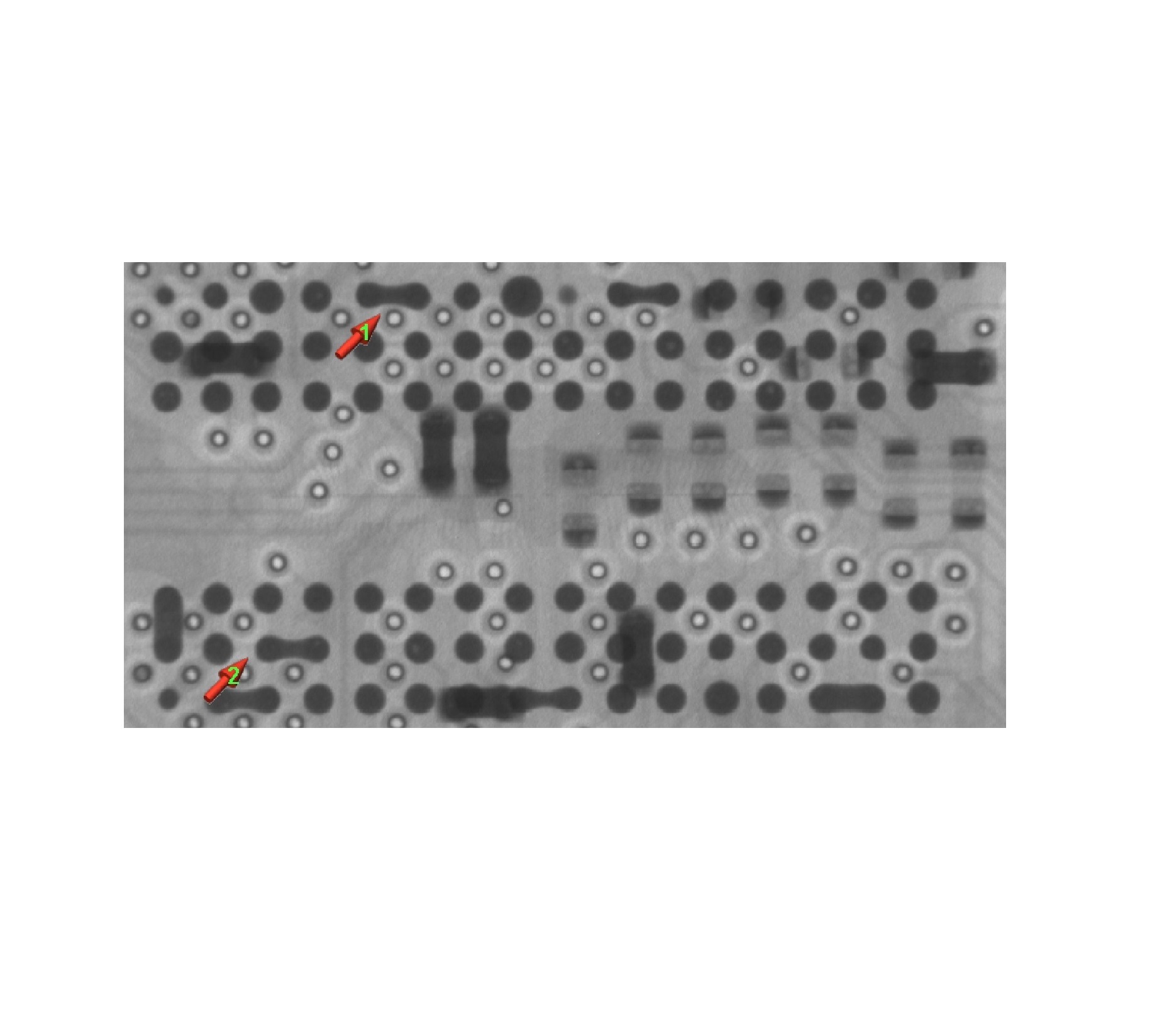

BLOWN TRANSISTOR BGA WITH SHORTS BGA WITH SHORTS 2 BGA WITH SHORTS 3
